did you saw the addon about leap ? Some audio patch
can be a good start
have a nice patching !
Statistics: Posted by BM2F — 27 Mar 2026, 11:25
]]>
May be it's a good opportunitie to get involved with Arrays
I believe you can't really "faire l'impasse" on Arrays because it's such a powerfull tool !
There it looks you can get number of hands valids (> palms) recognized (1 or 2)
From there you can know wich value of the Array you're intereseted in (first or second)
I guess you can even reorganize dynamically the values order > so when 2 hands are recognized : the first value is always the one with the smaller x value (the one one the left) ...
May be you'll spend more time today learning to work with Arrays but you'll be quicker next time and you'll learn powerfull tools
Il est toujours bon d'apprendre à pêcher
Statistics: Posted by grego mondo — 25 Mar 2026, 10:52
]]>
I don't know if this is what you were suggesting, but my hands are being recognized—it works.
Now I have to build the UltraLeap patch.
I’m not used to working with arrays. My initial tests to link hand or finger gestures to audio parameters doesn't work.
Would anyone have a template?
Or I've seen the idea of using Geco. Is that an alternative?
If you have an idea, please let me know
Statistics: Posted by gwennaelle — 25 Mar 2026, 10:14
]]>
]]>
Is there a driver or update that needs to be installed?
Thank you for your reply
Gwennaelle
Statistics: Posted by gwennaelle — 23 Mar 2026, 15:34
]]>
This script is an advanced evolution of the standard MIDI Transpose module. While it retains the core functionality of pitch shifting, it introduces an intelligent Auto-Wrap system. This feature ensures that transposed notes stay within a specific musical range (octave), effectively creating automatic inversions and smoother voice leading for generative patches and chords.
Core Functionalities
Standard Transposition: Functions exactly like the original script, shifting incoming MIDI notes by a user-defined interval (+/- 24 semitones).
Polyphonic Support: Handles multiple MIDI messages (chords) simultaneously, maintaining the integrity of Note-On, Note-Off, and Velocity data.
New Advanced Features
Dynamic Root Control: A new Root Note input allows you to define the start of your "active window." All harmonized notes will be mathematically forced to stay relative to this reference.
Intelligent Auto-Wrap: When active, the script monitors the output pitch. If a transposed note exceeds the Root + 12 boundary, it is automatically shifted down by octaves until it fits the window. Conversely, if it falls below the Root, it is shifted up.
Switchable Inversions: A dedicated Wrap Active switch allows you to toggle between "Block Chords" (standard parallel movement) and "Smart Voicing" (inversions within a single octave).
//////////////////////////
// transpose midi with optional auto-wrap
// Window defined by Root and Root+12
/////////////////////////
var input : Tparameter;
var output : Tparameter;
var transpo : TParameter;
var active : TParameter;
var root : TParameter;
procedure init;
begin
Input := CreateParam('midi in', ptMidi, pioInput);
Output := CreateParam('midi out', ptMidi, pioOutput);
transpo := CreateParam('transpo', ptDataFader, pioInput);
transpo.Format('%.0f');
transpo.Min(-24);
transpo.Max(24);
root := CreateParam('root note', ptDataFader, pioInput);
root.Format('%.0f');
root.Min(0);
root.Max(115);
// On ne met pas de .Value() ici pour éviter l'erreur
active := CreateParam('wrap active', ptSwitch, pioInput);
SetModuleColor($FF3298DB);
end;
procedure Process;
var i : integer;
var nbOfMidi : integer;
var ReceivedMidi : TMidi;
var TranspoVal : integer;
var RootVal : integer;
var HighLimit : integer;
begin
nbOfMidi := input.Length;
output.length(nbOfMidi);
if (nbOfMidi > 0) then
begin
TranspoVal := transpo.asInteger;
RootVal := root.asInteger;
HighLimit := RootVal + 12;
for i := 0 to nbOfMidi-1 do
begin
ReceivedMidi := input.asMidi(i);
ReceivedMidi.data1 := ReceivedMidi.data1 + TranspoVal;
if (active.asInteger > 0) then
begin
while (ReceivedMidi.data1 > HighLimit) do
begin
ReceivedMidi.data1 := ReceivedMidi.data1 - 12;
end;
while (ReceivedMidi.data1 < RootVal) do
begin
ReceivedMidi.data1 := ReceivedMidi.data1 + 12;
end;
end;
output.asMidi(i, ReceivedMidi);
end;
end;
end;
Statistics: Posted by joffo78 — 30 Jan 2026, 09:44
]]>
Statistics: Posted by joffo78 — 30 Jan 2026, 09:41
]]>
About your stuff for the wheels :
I was wondering about shutter how do you choose wich shutter you act on ?
Statistics: Posted by grego mondo — 01 Dec 2025, 16:49
]]>
++
Olivar
Statistics: Posted by oli_lab — 27 Nov 2025, 21:12
]]>
They're all okay.

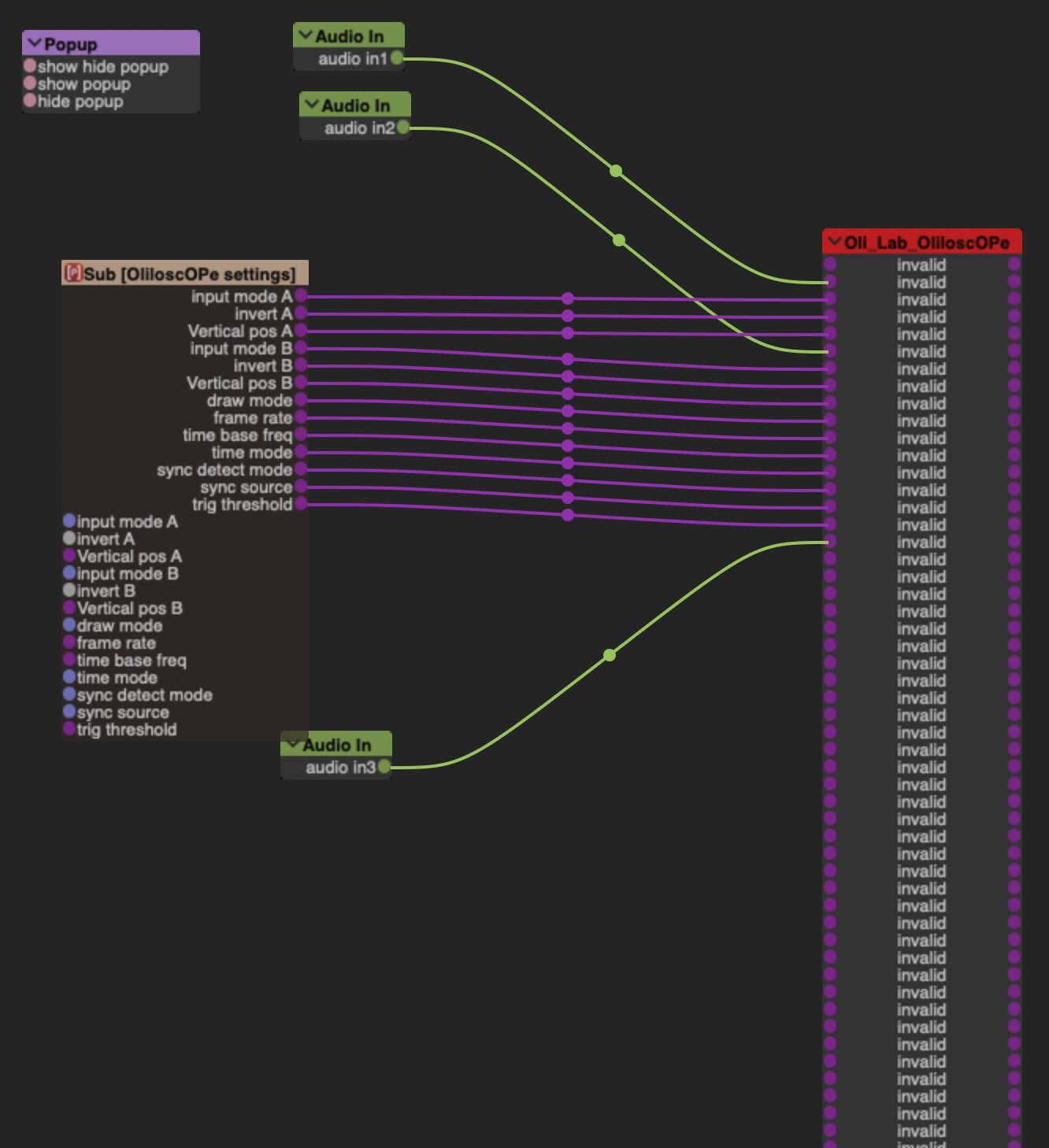

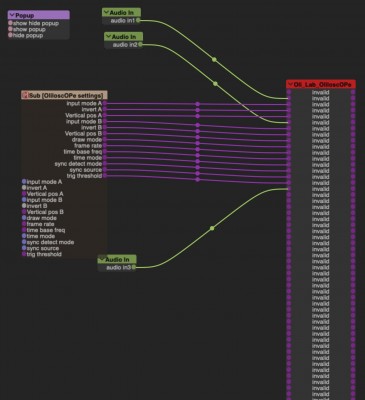

But the Patch exemple "OlilloscOPe.pat" is not OK.
Statistics: Posted by cmodica — 27 Nov 2025, 17:37
]]>
It is uploaded in the addons :
Olilloscope 3ch (Olilloscope)
in the modulilab :
ADDSR V3
wavetable reader V2
wave packet V3
Velvet Noise (added the sparsity input for fun)
Wave Extractor-V2
++
Olivar
Statistics: Posted by oli_lab — 26 Nov 2025, 20:13
]]>
- Wave Recorder V2 is Invalid
- Wave Recorder V3 is OK
do you mean wavetable reader ?
Statistics: Posted by oli_lab — 26 Nov 2025, 19:18
]]>
]]>
Statistics: Posted by oli_lab — 21 Nov 2025, 14:36
]]>
All the Data_Lab are loading well. Except "ADDSR V3". The "ADDSR V2" is OK, but the V3 is invalid.
All the Moduli_Lab are loading well. But

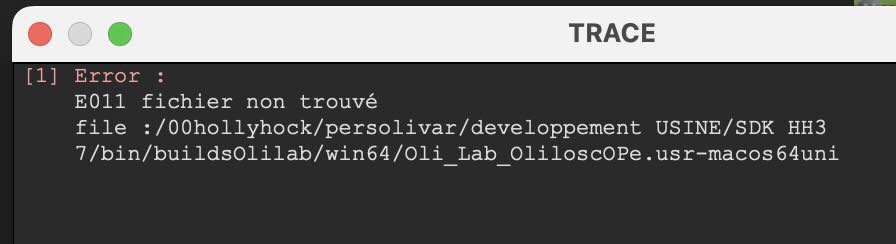

- "Velvet Noise" and "Wave Extractor-V2" send a "(2) Error : in Process" in the Trace panel.
- Wave Recorder V2 is Invalid
- Wave Recorder V3 is OK
- OliloscPe-3ch is Invalid
- Legacy_Lab -> all OK
- MorphFilters3 -> all OK
- Multitrack recorder -> all OK
- Physic_Lab -> all OK
-RythmBox 2 -> all OK
- RythmBox1 -> all OK
Spices -> all OK
I hope it helps.
Have a nice day.
Statistics: Posted by cmodica — 21 Nov 2025, 12:36
]]>
- I delete all the data_lab, moduli_lab and Multitrack recorder from the application/config/addons.
- I download the new addons from Usine - > OK.
There is in each folder, a sub folder _MACOSX -> of course, nothings loads well in MAC OS 15 with my M4
Everything loads well. But i didn't find "gen wave packet V3" ...modulilab :
PAF (phase aligned formant)
gen wave packet V3
wavetable reader V3
phase distorsion V3
datalab :
event recorder V2
multitrack recorder :
multitrack recorder
Statistics: Posted by cmodica — 21 Nov 2025, 11:55
]]>
here is the list of updated modules so far : (you'll need to remove the current addons then reload them, otherwise you'll get doubles)
modulilab :
PAF (phase aligned formant)
gen wave packet V3
wavetable reader V3
phase distorsion V3
datalab :
event recorder V2
multitrack recorder :
multitrack recorder
cheers
Statistics: Posted by oli_lab — 19 Nov 2025, 17:40
]]>
Statistics: Posted by cmodica — 19 Nov 2025, 17:21
]]>
now, the bad one :
I need to know all the modules that are not working so I can fix them.
and they are hundreds...
Statistics: Posted by oli_lab — 19 Nov 2025, 14:56
]]>
Statistics: Posted by cmodica — 19 Nov 2025, 14:01
]]>
I compiled an example from the SDK and a module of mine (with clean xcode project) can you give it a try again ?
thanx
Olivar
Statistics: Posted by oli_lab — 19 Nov 2025, 12:24
]]>
Sorry but I tested both and neither one loads. They appear as Invalid.
Statistics: Posted by cmodica — 19 Nov 2025, 10:18
]]>
I suspect it doesn't come from the compilation settings as they are all the same. I need to be sure it comes from something else in Xcode.
I recompiled the gcd module (gcd_test) if it doesn't work >> problem with Xcode if it works>>it will mean that I have an issue with with my settings for the other module (phase distorsion V3)
thanx for your time
Olivar
Statistics: Posted by oli_lab — 18 Nov 2025, 19:44
]]>
I tested on a Mac M4
ADDSRV3 and PhaseDistorsionV3 not loaded (Invalid)can you try ADDSRV3 and phaseDistortionV3 from modulilab34 ?
load ok !can you try to load the GCD module (datalab/math) into a M4 and tell me if it is loading ok ?
Thank you.
Statistics: Posted by cmodica — 16 Nov 2025, 18:36
]]>
Hello Olivar.
I tested it with my new MacBook Pro M4 and it doesn't work.
Both seem to be invalid. I downloaded the latest Modulilab update (Modulilab 34) to test them.
They you for your work.
Hi ! I tested it with my new MacBook Pro M4 and it doesn't work.
Both seem to be invalid. I downloaded the latest Modulilab update (Modulilab 34) to test them.
They you for your work.
can you try to load the GCD module (datalab/math) into a M4 and tell me if it is loading ok ?
I'm puzzled !
find out so far that M4 need ARM64e and M2 only ARM64
thanx
Statistics: Posted by oli_lab — 11 Nov 2025, 16:47
]]>
